Kapp VAS 432 (Retrofit 2020)

Kapp VAS 432 (Retrofit 2020)

Have one to sell?
847-608-9300
staff@globetec.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Grinders, Gear
Manufacturer:
KAPP
Model:
VAS432
Stock #:
5877
Status:
For Sale

Description

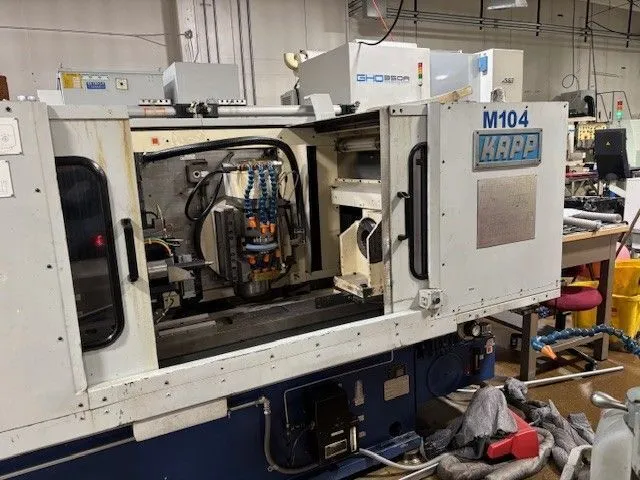

CNC Gear Grinding machine for high-precision external gears, splines, and special profiles. Modernized with Siemens 840D control providing full CNC functionality in 2020

Spindle OrientationHorizontalHorizontal
Max Gear Dia.11.8"299.72 mm
Max Module0.5 ~ 120.5 ~ 12
Tooth Range1 ~ 9991 ~ 999
Max Face Width19.6 in
X-Axis (Radial)7.3"185.42 mm
X-Axis Speed100 in/min.2,540 mm/min.
Z-Axis (Axial)16.1"408.94 mm
Z-Axis Speed400 in/min.10,160 mm/min.
X2-Axis2"50.8 mm
X2-Axis Speed60 in/min.1,524 mm/min.
Y2-Axis2"50.8 mm
Y2-Axis Speed60 in/min.1,524 mm/min.
A-Axis Degrees9090
C-Axis DegreesContinuousContinuous
Grinding Spindle DegreesContinuousContinuous
Grinding Spindle Speed6,360 RPM6,360 RPM
Dressing Spindle DegreesContinuousContinuous
Dressing Spindle Speed3,000 RPM3,000 RPM

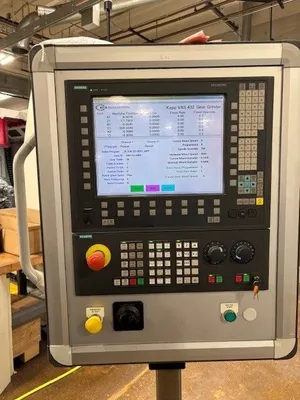

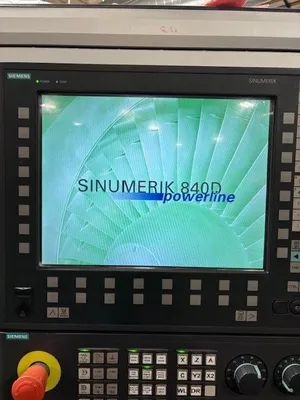

ControlCNC (Siemens 840D)CNC (Siemens 840D)
Weight17,800 Lbs17,800 Lbs
