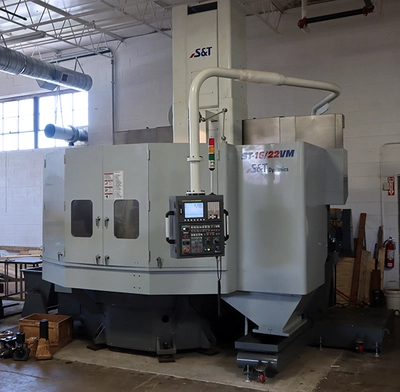

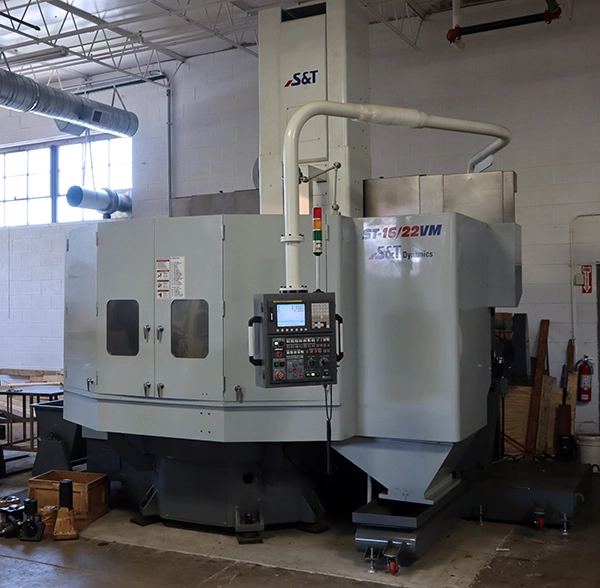

2013 S&T DYNAMICS ST-1622VM
CNC Turning Centers, Vertical CNC TurningSwing | 86.6 in |
Turning Diameter | 78.7 in |
Turning Height | 29.5 in |
Table Diameter | 63 in |
Table Capacity | 22000 lb |
Main Spindle power | 60 hp |
Main Spindle Speed | 256 rpm |
Z-Axis Travel | 35.4 in |
C-Axis Rotation | 0.001 |
Tool Positions | 6 |
Milling Spindle Speed | 2000 rpm |
Milling Spindle Power | 7 hp |
Dimensions | 186" x 169" x 168" |
Weight | 42000 |
Fanuc 0i-T CNC Control
Live tool holders
Facing right angle head
Central lubrication system
2 speed ZF gearbox
63" manual chuck
Continuous chip flush system.
Misc tool holders
Chip conveyor
