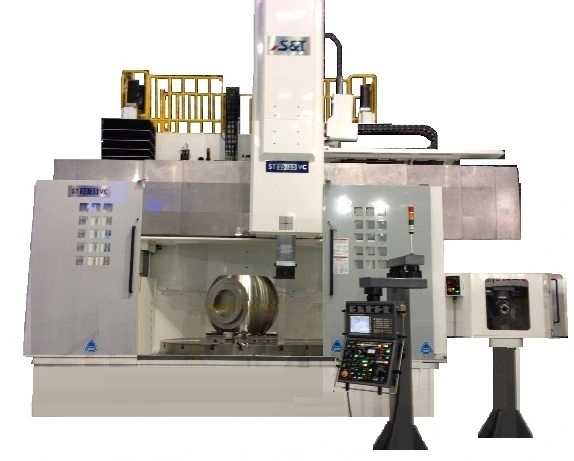

S&T DYNAMICS ST2535 - New
Have one to sell?
ConditionNew
New
Fanuc 0i-T CNC
98" Manual 4-Jaw Chuck
16 Position ATC
C-Axis
Chip Conveyor
Auto Lube System
Hydraulic System
Operator panel
Work Light
Telescopic Covers
Patrol Lamp
Tool kit
Leveling pads
Imperial
| Swing | 137.8 in |
| Turning Height | 80.7 in |
| Table Diameter | 98.4 in |
| Table Capacity | 55000 lb |
| Main Spindle power | 100 hp |
| Main Spindle Speed | 130 rpm |
| X-Axis Travel | -7.87”~ +106" |
| Z-Axis Travel | 47.2 in |
| C-Axis Rotation | 0.001 |
| Ram Size | 11.8"x11.8" |
| W-Axis Travel (Column) | 43 |
| Tool Positions | 16 |
| Milling Spindle Speed | 2000 rpm |
| Milling Spindle Power | 35 hp |
| Dimensions | 309" x 249" x 285" |
| Weight | 99,000 Lbs. |
Fanuc 0i-T CNC
98" Manual 4-Jaw Chuck
16 Position ATC
C-Axis
Chip Conveyor
Auto Lube System
Hydraulic System
Operator panel
Work Light
Telescopic Covers
Patrol Lamp
Tool kit
Leveling pads
