MATRIX MVGG0800 - New

MATRIX MVGG0800 - New

Have one to sell?
847-608-9300
staff@globetec.com
ConditionNew
Have one to sell?

Overview

Type:
Grinders, Gear
Manufacturer:
MATRIX
Model:
MVGG-0800
Condition:
Build To Order
Stock #:
5870
Status:
For Sale

Description

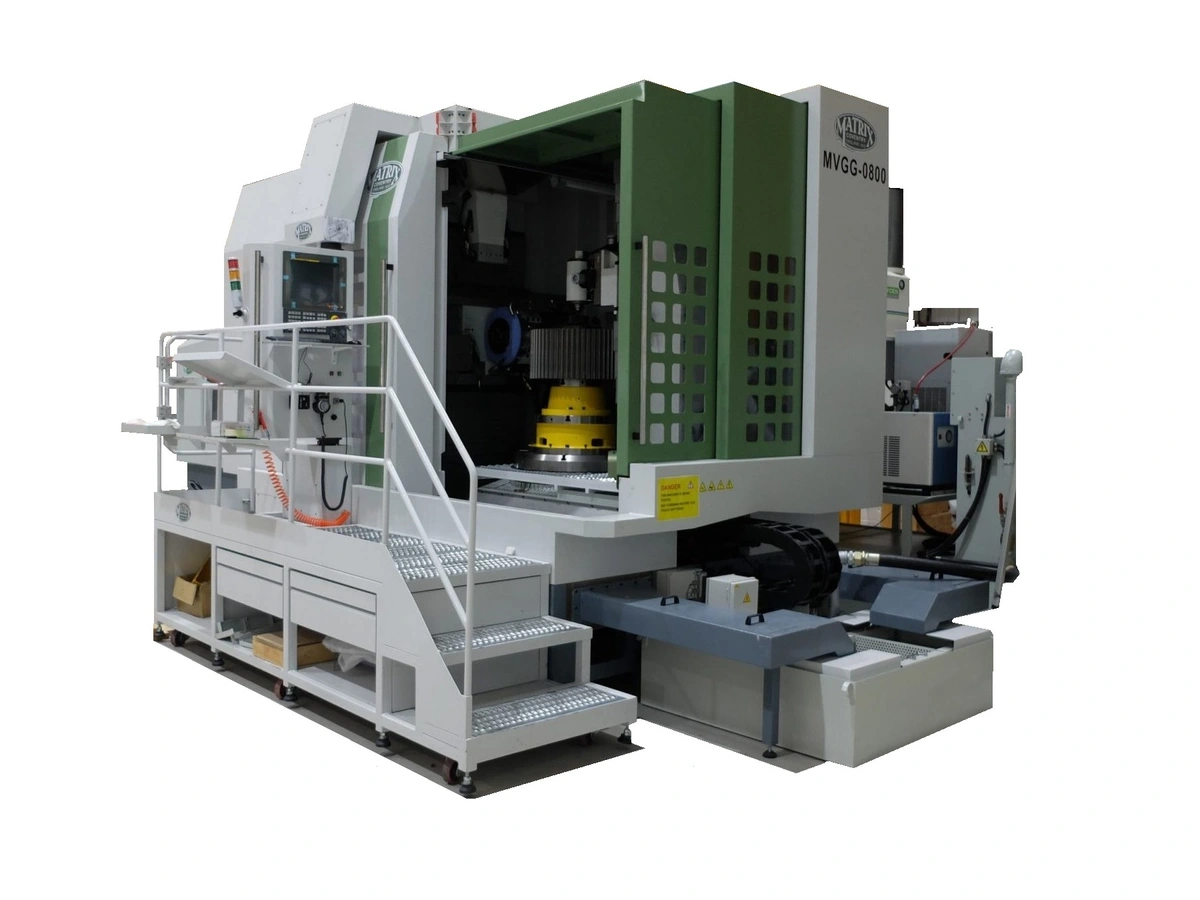

CNC Vertical Form Gear Grinder

Max Part Diameter31.4 in
Max ModuleM20M20
Max Tool Depth1.7 in
Flute Range1~991~99
Flute Helix Angle±40°±40°
Tooth Range9~9999~999
Helix Angle±45°±45°
Grinding Slide Travel15.7 in
Z-Axis Travel15.8 in
Table Diameter29.1 in
Max Table Load5500 lb
Tailstock Center Height49.2 in
Max Wheel Diameter15.7 in
Max Wheel Width2.7 in
Grinding Wheel Power20 hp
Grinding Wheel Speed4000 rpm
Dimensions247" x 205" x 135"247" x 205" x 135"
Weight37200 Lbs37200 Lbs

Fanuc 31i CNC Control

Overview

Type:
Grinders, Gear
Manufacturer:
MATRIX
Model:
MVGG-0800
Condition:
Build To Order
Stock #:
5870
Status:
For Sale

Description

CNC Vertical Form Gear Grinder

Specifications

Imperial

Max Part Diameter31.4 in
Max ModuleM20
Max Tool Depth1.7 in
Flute Range1~99
Flute Helix Angle±40°
Tooth Range9~999
Helix Angle±45°
Grinding Slide Travel15.7 in
Z-Axis Travel15.8 in
Table Diameter29.1 in
Max Table Load5500 lb
Tailstock Center Height49.2 in
Max Wheel Diameter15.7 in
Max Wheel Width2.7 in
Grinding Wheel Power20 hp
Grinding Wheel Speed4000 rpm
Dimensions247" x 205" x 135"
Weight37200 Lbs

Equipped With

Fanuc 31i CNC Control
