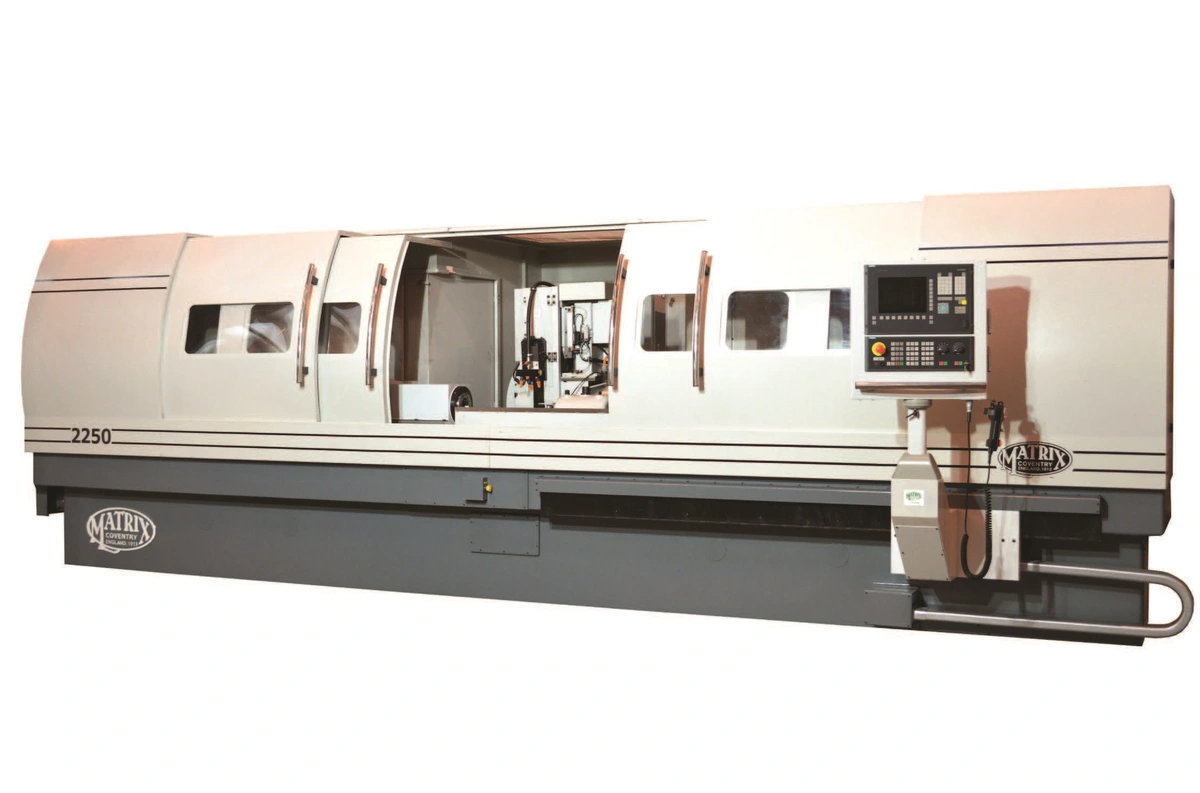

MATRIX 2250 - New

Have one to sell?
847-608-9300
staff@globetec.com
ConditionNew
Have one to sell?

Overview

Type:
Thread Grinders
Manufacturer:
MATRIX
Model:
2250
Condition:
Build To Order
Stock #:
5864
Status:
For Sale

Description

CNC OD Thread Grinder

External Or InternalExternalExternal
Max. Swing Diameter13.7 in
Min./Max. Grinding Diameter0.39" / 13.8"0.39" / 13.8"
Min./Max. Grinding Length86.6"86.6"
Work Spindle Speed0.4 ~ 120 RPM0.4 ~ 120 RPM
Wheel Head Spindle Speed2,000 RPM2,000 RPM
Grinding Wheel Dia.19.6"497.84 mm
Grinding Wheel Width1.9"48.26 mm
A-Axis Helix Capacity± 45°± 45°
Z-Axis Table Slide Travel94.4 in
X-Axis Wheel Slide Travel14.1 in
Z/X Rapid Traverse275/275 IPM275/275 IPM
Wheel Dresser TypeFixedFixed
Wheel Dresser Speed0 ~ 6,000 RPM (Bi-directional)0 ~ 6,000 RPM (Bi-directional)
Dimensions322"x200"322"x200"
Weight26,500 Lbs26,500 Lbs

Tailstock Module (Manually Operated)
Automatic Integral Wheel Balancing
Absolute Encoders fitted on all Axis
Work Head Mounted Dresser Module
Siemens 840DE with PCU 50.3
HMI Advanced Software
Matrix Programming Interface
Matrix "Thread" ProfileMA TE Software
Hand Held Pendent
Machine Enclosure
Door Interlocks
Operator lighting
Coolant clarification system
Fume Extraction unit.
Magnetic Separator
Centrifugal Separator
Temperature Control Unit
Electrical Control Cabinet
Remote Diagnostics
Air Conditioning Unit
Spindle Chiller Unit
2 x MT centers for Work Holding
1 x Vitrified Aluminum Oxide Grinding Wheel
1 x Grinding Wheel Adaptor ( To Suit Above Wheel )
Standard Tools (Spanners, Wheel extractor, Hex Keys).
