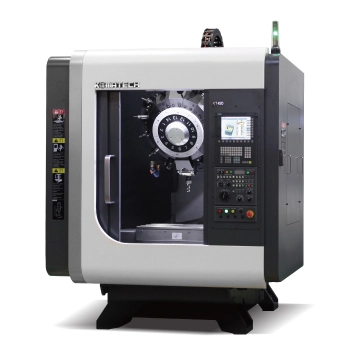

KOMATECH KT-420 - New

Have one to sell?
847-608-9300
staff@globetec.com
ConditionNew
Have one to sell?

Overview

Type:
CNC Machining Centers, Vertical CNC Machining
Manufacturer:
KOMATECH
Model:
KT-420
Condition:
Build To Order
Stock #:
5857
Status:
For Sale
Table-L25.9"657.86 mm
Table-W17.7"449.58 mm
Table Capacity551 lb249.9 kg
X-Axis Travel22"558.8 mm
Y-Axis Travel16.5"419.1 mm
Z-Axis Travel11.8"299.72 mm
Power28 hp20.9 kW
TaperBig Plus 30Big Plus 30
RPM15,000 RPM15,000 RPM
# ATC1414
Tool Change Time T~T1.1 sec.1.07 s
Tool Change Time C~C1.4 sec.1.36 s

Mitsubishi M80CNC
#30 Big Plus Spindle
Spindle Chiller
Auto Lube System
CTS Prep
4th Axis Prep
Air Blow
Top Cover
Enclosure
Work Light

Available Options:
Fanuc or Siemens CNC
Chip Conveyor
Coolant Thru Spindle
21 Position ATC
4th Axis Rotary Table
Auto Door
Robot Interface
Hydraulic Fixturing
