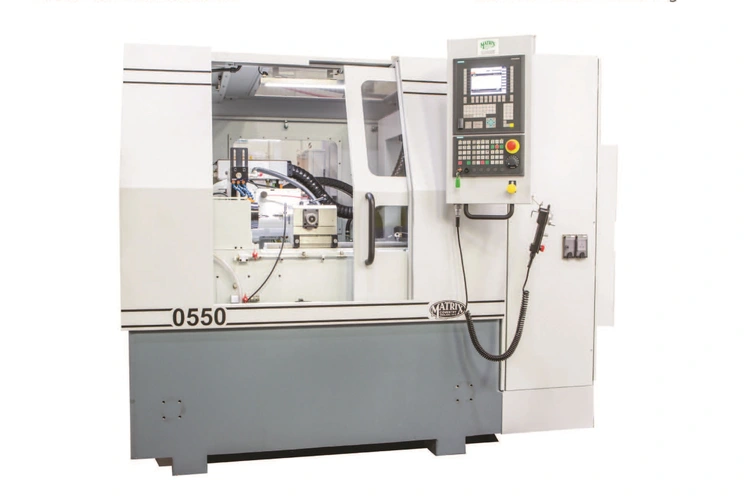

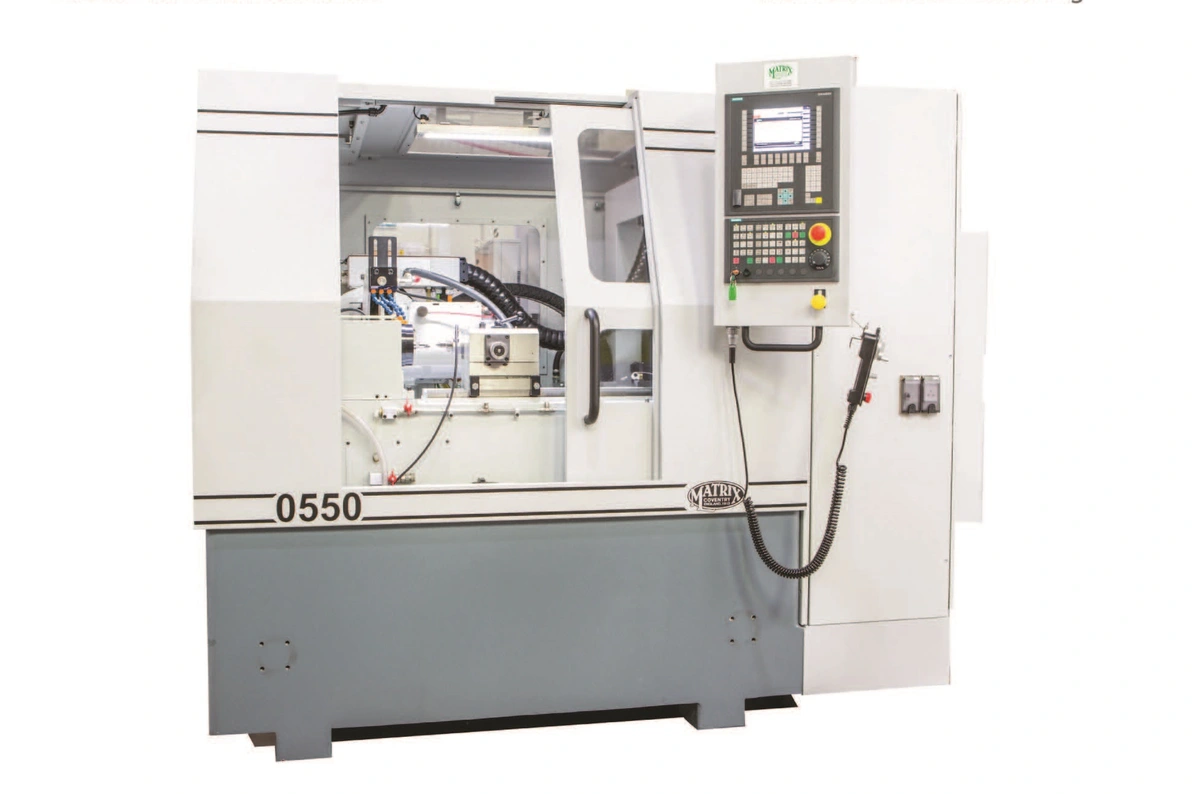

MATRIX 0550 - New

Have one to sell?
847-608-9300
staff@globetec.com
ConditionNew
Have one to sell?

Overview

Type:
Thread Grinders
Manufacturer:
MATRIX
Model:
0550
Condition:
Build To Order
Stock #:
5856
Status:
For Sale

Description

CNC OD Thread Grinder

External Or InternalExternalExternal
Max. Swing Diameter5.9 in
Min./Max. Grinding Diameter0.19" / 3.9"0.19" / 3.9"
Min./Max. Grinding Length15.7"15.7"
Work Spindle Speed0.4 ~ 120 RPM0.4 ~ 120 RPM
Wheel Head Spindle Speed2,000 RPM2,000 RPM
Grinding Wheel Dia.17.7"449.58 mm
Grinding Wheel Width0.98"24.892 mm
A-Axis Helix Capacity± 45°± 45°
Z-Axis Table Slide Travel21.2 in
X-Axis Wheel Slide Travel11.4 in
Z/X Rapid Traverse275/275 IPM275/275 IPM
Wheel Dresser TypeFixedFixed
Wheel Dresser Speed0 ~ 6,000 RPM (Bi-directional)0 ~ 6,000 RPM (Bi-directional)
Dimensions150"x138"150"x138"
Weight17,600 Lbs17,600 Lbs

Tailstock Module (Manually Operated)
Automatic Integral Wheel Balancing
Absolute Encoders fitted on all Axis
Work Head Mounted Dresser Module
Siemens 840DE with PCU 50.3
HMI Advanced Software
Matrix Programming Interface
Matrix "Thread" ProfileMA TE Software
Hand Held Pendent
Machine Enclosure
Door Interlocks
Operator lighting
Coolant clarification system
Fume Extraction unit.
Magnetic Separator
Centrifugal Separator
Temperature Control Unit
Electrical Control Cabinet
Remote Diagnostics
Air Conditioning Unit
Spindle Chiller Unit
1 x Matrix Standard Diamond Disc
2 x 2 morse taper centeres
1 x 1/2" Wide Vitrified Aluminium Oxide Grinding Wheel
1 x 1/2" Wide Grinding Wheel Adaptor
Standard Tools (Spanners, Wheel extractor, Hex Keys).
