New

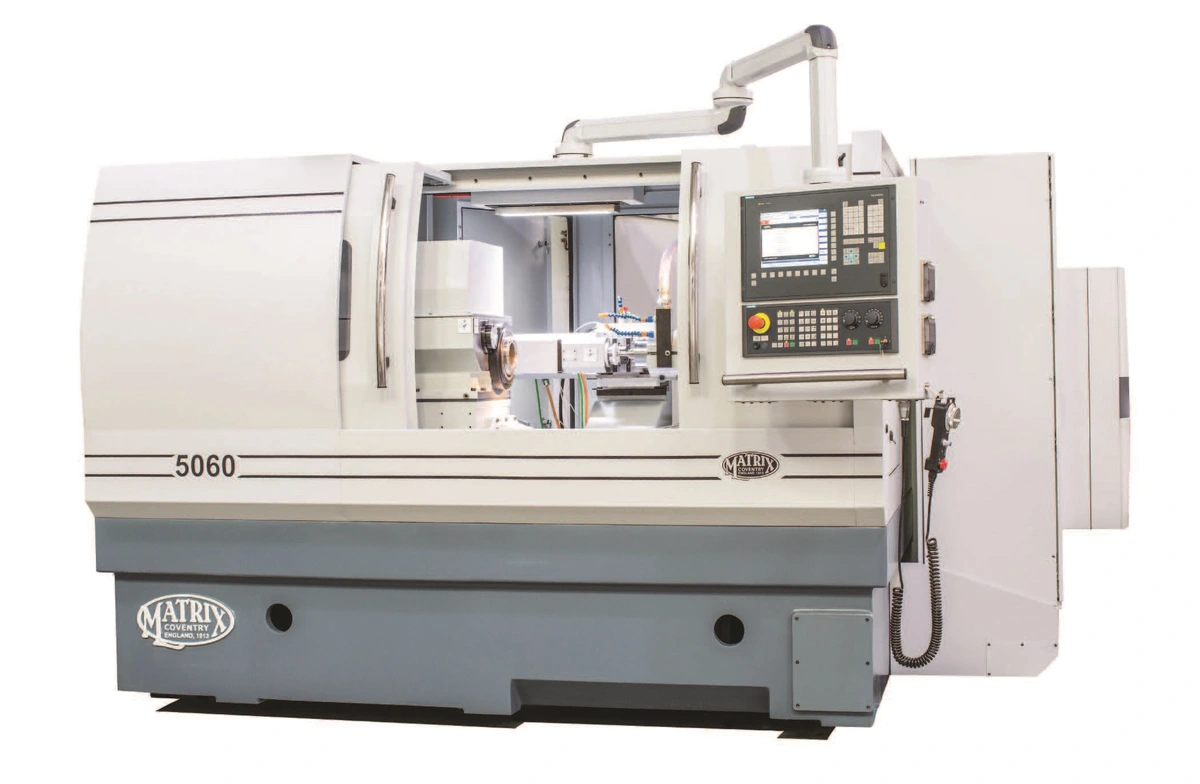

MATRIX 5060 - New
Thread Grinders
CNC ID Thread Grinder
| External Or Internal | Internal |
| Max. Swing Diameter | 19.68 in |
| Min./Max. Grinding Diameter | 0.6" / 15.7" |
| Min./Max. Grinding Length | 9.8" |
| Work Spindle Speed | 0.4 ~ 120 RPM |
| Wheel Head Spindle Speed | 5,000 ~ 30,000 RPM |
| Grinding Wheel Dia. | 3.9" |
| Grinding Wheel Width | 1.9" |
| A-Axis Helix Capacity | ± 12° |
| Z-Axis Table Slide Travel | 19.7 in |
| X-Axis Wheel Slide Travel | 10.6 in |
| Z/X Rapid Traverse | 275/275 IPM |
| Wheel Dresser Type | Fixed |
| Wheel Dresser Speed | 0 ~ 6,000 RPM (Bi-directional) |
| Dimensions | 170"x118" |
| Weight | 17,600 Lbs |
Siemens 840DE with PCU 50.3 Including:
HMI Advanced Software
Matrix Operating Programming Interface
Matrix "Thread" ProfileMATE Software
Hand Held Pendent
Machine Enclosure including:
Door Interlocks
Operator lighting
Coolant clarification system including
Fume Extraction unit.
Magnetic Separator
Centrifugal Separator
Temperature Control Unit
Electrical Control Cabinet Including
Remote Diagnostics
Air Conditioning Unit
Spindle Chiller Unit
1 x Matrix Standard Diamond Disc
3 x Vitrified Aluminium Oxide Grinding Wheel
Standard Tools (Spanners, Wheel extractor, Hex Keys)
Full set manuals
