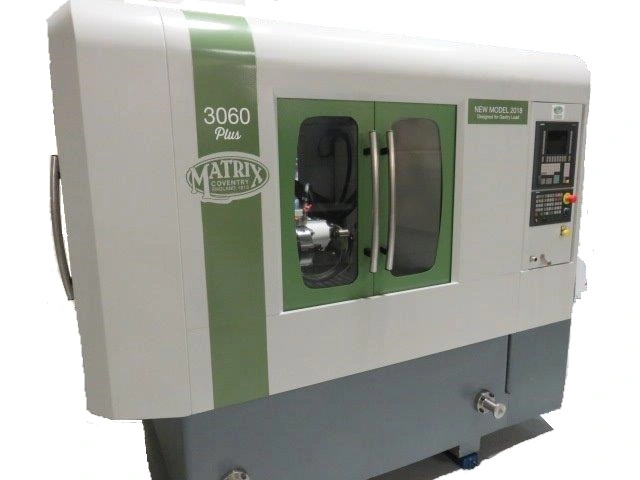

MATRIX 3060 - New

Have one to sell?
847-608-9300
staff@globetec.com
ConditionNew
Have one to sell?

Overview

Type:
Thread Grinders
Manufacturer:
MATRIX
Model:
3060
Condition:
Build To Order
Stock #:
5854
Status:
For Sale

Description

CNC ID Thread Grinder

External Or InternalInternalInternal
Max. Swing Diameter11.87 in
Min./Max. Grinding Diameter0.3" / 7.8"0.3" / 7.8"
Min./Max. Grinding Length3.9"3.9"
Work Spindle Speed0.4 ~ 120 RPM0.4 ~ 120 RPM
Wheel Head Spindle Speed5,000 ~ 30,000 RPM5,000 ~ 30,000 RPM
Grinding Wheel Dia.2.36"59.944 mm
Grinding Wheel Width0.78"19.812 mm
A-Axis Helix Capacity± 20°± 20°
Z-Axis Table Slide Travel19.7 in
X-Axis Wheel Slide Travel12.2 in
Z/X Rapid Traverse275/275 IPM275/275 IPM
Wheel Dresser TypeFixedFixed
Wheel Dresser Speed0 ~ 6,000 RPM (Bi-directional)0 ~ 6,000 RPM (Bi-directional)
Dimensions150"x138"150"x138"
Weight14,500 Lbs14,500 Lbs

Siemens 840DE with PCU 50.3 Including:
HMI Advanced Software
Matrix Operating Programming Interface
Matrix "Thread" ProfileMATE Software
Hand Held Pendent
Machine Enclosure including:
Door Interlocks
Operator lighting
Coolant clarification system including
Fume Extraction unit.
Magnetic Separator
Centrifugal Separator
Temperature Control Unit
Electrical Control Cabinet Including
Remote Diagnostics
Air Conditioning Unit
Spindle Chiller Unit
1 x Matrix Standard Diamond Disc
3 x Vitrified Aluminium Oxide Grinding Wheel
Standard Tools (Spanners, Wheel extractor, Hex Keys)
Full set manuals
