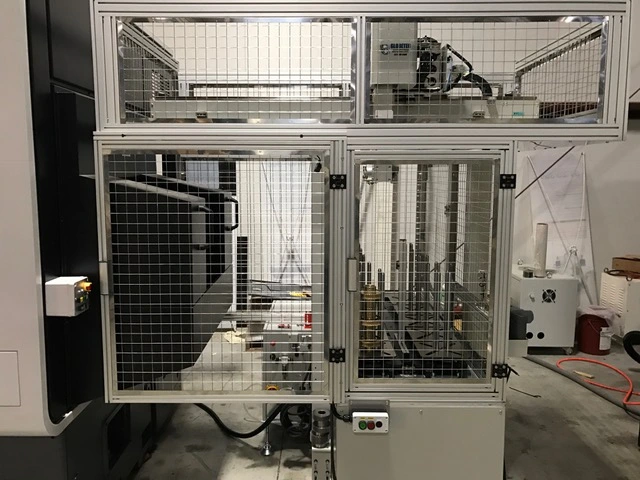

2017 EasyGantry EWGz05
Feeding & Automation
| Robot Axes | 4 |
| X-Axis Stroke | 2500 mm, Vx max.: 90 m/minute |
| Y-Axis Stroke | 900 mm, Vy max.: 90 m/minute |
| Z-Axis Stroke | 100 mm, Vz max: 15 m/minute |
| C-Axis | ± 360°, 50 RPM |
| Beam Length | 2,980 mm |
| Part Size - Disk | Ø5.0 ~ 120.0 mm x L100 mm |
| Part Size - Bar | Ø5 ~ 45.0 mm x L330 mm |
| Part Weight | 5 kg |
| Part Supply Table | Stocker Type |
| Number of Pallets | 10 |
| Max. Pallet Load | 30 kg |
5.7” mono-chrome LCD hand hold controller
Mitsubishi PLC control system
Stainless Steel mesh Safety Covers
