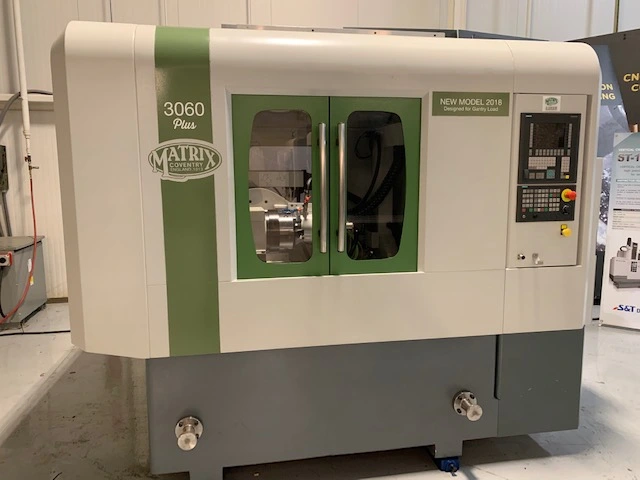

2019 MATRIX 3060
Thread Grinders
| External Or Internal | Internal |
| Max. Swing Diameter | 11.87 in |
| Min./Max. Grinding Diameter | 0.3" / 7.8" |
| Min./Max. Grinding Length | 3.9" |
| Work Spindle Speed | 0.4 ~ 120 RPM |
| Wheel Head Spindle Speed | 5,000 ~ 30,000 RPM |
| Grinding Wheel Dia. | 2.36" |
| Grinding Wheel Width | 0.78" |
| A-Axis Helix Capacity | ± 20° |
| Z-Axis Table Slide Travel | 19.7 in |
| X-Axis Wheel Slide Travel | 12.2 in |
| Z/X Rapid Traverse | 275/275 IPM |
| Wheel Dresser Type | Fixed |
| Wheel Dresser Speed | 0 ~ 6,000 RPM (Bi-directional) |
| Dimensions | 150"x138" |
| Weight | 14,500 Lbs |
Siemens 840 DE CNC
Matrix ProfileMATE Software
Siemens HMI Advanced Interface
High Frequency Wheel Head
Coolant System
Programmable Helix
Centrifugal Separator
Absolute Encoders on all Axes
Magnetic Separator
Work Head Mounted Dresser
Spindle Chiller
AC Electrical (ECC)
Totally Enclosed Hood
(1) Diamond Dressing Media
(1) Grinding Wheel
(1) Hard Media Quill
