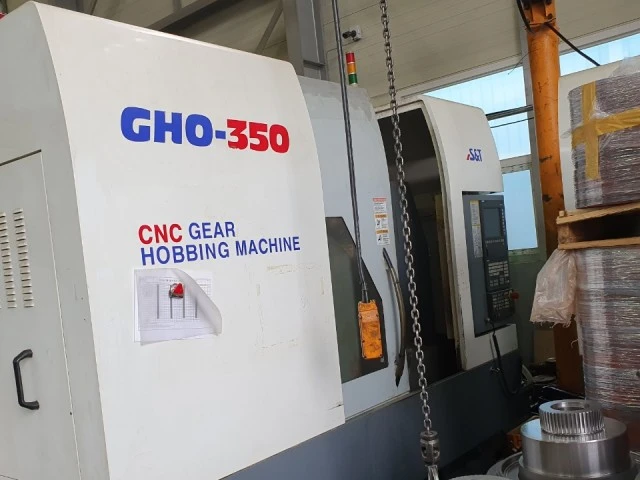

2012 S&T DYNAMICS GHO-350
Gear Equipment, CNC
| Hobber Type | Vertical |
| Max Gear Diameter | 13.7" |
| Max. Module | M6 |
| Max. Gear Weight | 77 lb |
| Max Hob Diameter | 7.5 in |
| Max. Hob Length | 9.5 in |
| X-Axis Travel | 8.2 in |
| Z-Axis Travel | 7.8 in |
| Rapid Feed X/Z | 47/39 IPM |
| Swivel Angle | +/ 35 Degree |
| Hob Speed | 6~400 RPM |
| Main Spindle Power | 25 hp |
| Dimensions | 163" x 91" x 99" |
| Weight | 22,000 lbs |
Fanuc 0i CNC
Splash Guard
Hydraulic System
Chip Conveyor
